Completed Mother Dark. Fractal Torrent.

xentr_thread_starter
Designed, printed, and painted some cable pass-throughs. Man that is going to be a lot of PCIe cables. :oops:
20211223_163557 (Large).webp

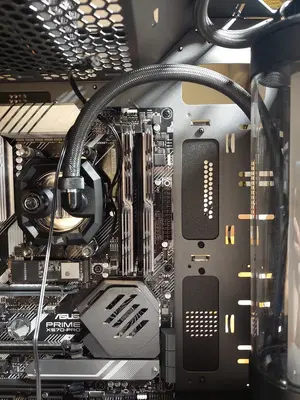

Got the pump finally wedged in place and all tubing runs around it completed. This case is just way too small for WC IMO. Printed a simple stand that uses the 140mm fan mounting. Then decoupled the pump w/ some foam.
20211223_150850 (Large).webp

20211223_144833 (Large).webp

Can't find a pinout for my PSU anywhere so made one. Sucks not having a 1:1 PSU like the Silverstone's I've used for the last 12 years. :(
20211223_163437 (Large).webp

And now starting on working on the cabling. Ya! :cautious:

You're going to sleeve up to one side of the "plate" and then sleeve again internal to the case??? o_O

Now that's dedication!!!!!

edit: Ok, I think I get it now.... a single sleeve / wire but all of the wires will have to pass through the plate before you crimp the connectors on.

Last edited:
The stuff you do with cable management just hurts my brain. Straight up awesome Sir, awesome.

And I really like the tubing in this one. It that something you bought or did you sleeve the tubing? Or did you explain that already and I missed it...?

xentr_thread_starter
Lysrin said:
The stuff you do with cable management just hurts my brain. Straight up awesome Sir, awesome.

And I really like the tubing in this one. It that something you bought or did you sleeve the tubing? Or did you explain that already and I missed it...?
Click to expand...
I guess not everyone was around when I explained it in 2012. :p

It is MDPC-X SATA sleeving. It can barely fit over 1/2OD tubing. And the sleeving fits under the compression rings on the fittings.

Nice work. Been awhile since I've seen sleeved tube. I showed someone your old build with the blue sleeving a little while ago.

xentr_thread_starter
Again went w/ a DIY RGB controller. Last time I just went w/ a single channel for just strips around the case. This time I am doing a 6 channel. ESP32 + a couple 3.3v to 5V logic shifters. Running WLED for FW again. Will need to design and print a simple case / mount for it.
20211228_094518 (Large).webp

And it works! Well at least the single channel I've tried so far. TBH they'll mostly just likely sit on white as this is a monochrome build.

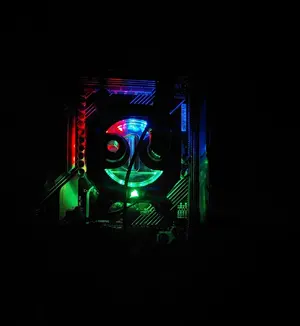

20211228_094116 (Large).webp

20211228_094449 (Large).webp

Was going to do all black wiring. But didn't have enough so I bought a spool of MDPC-X Carbon-BTI.
20211223_170705 (Large).webp

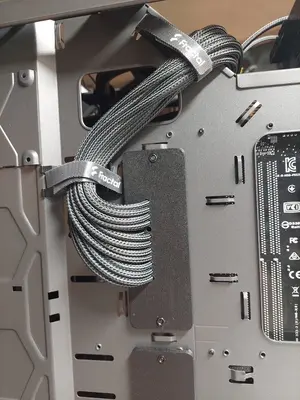

Was going to do 50/50 split of it. But I found the black against it didn't look well. Going a more relaxed cabling job this time. A) because this isn't a 1:1 PSU like I'm use to, so it makes wiring so much harder. And B) I'm getting old and just don't have the patience. :p

20211224_133651 (Large).webp

From the front. Comb will be removed @ final product.
20211228_095004 (Large).webp
And the finished '24-pin' @ the PSU. Can't really get it better due to it not being 1:1. Hopefully it still works as I removed all double wires.
